Edge behavior and interiors

This notebook illustrates the edge behavior and how Polygon interiors are treated.

Note

From version 0.5 regionmask treats points on the region borders differently and also considers poygon interiors (holes), e.g. the Caspian Sea in natural_earth.land_110 region.

Preparation

Import regionmask and check the version:

import regionmask

regionmask.__version__
'0.6.0'

Other imports

import xarray as xr
import numpy as np

import cartopy.crs as ccrs
import matplotlib.pyplot as plt

from matplotlib import colors as mplc
from shapely.geometry import Polygon

Define some colors:

cmap1 = mplc.ListedColormap(["#9ecae1"])
cmap2 = mplc.ListedColormap(["#fc9272"])
cmap3 = mplc.ListedColormap(["#cab2d6"])

cmap_2col = mplc.ListedColormap(["#9ecae1", "#fc9272"])

Methods

Regionmask offers three methods to rasterize regions

  1. rasterize: fastest but only for equally-spaced grid, uses rasterio.features.rasterize internally.

  2. shapely: for irregular grids, uses shapely.vectorized.contains internally.

  3. legacy: old method (deprecated), slowest and with inconsistent edge behaviour

All methods use the lon and lat coordinates to determine if a grid cell is in a region. lon and lat are assumed to indicate the center of the grid cell. Methods (1) and (2) have the same edge behavior and consider ‘holes’ in the regions. Method (3) is deprecated and will be removed in a future version. regionmask automatically determines which method to use.

  1. subtracts a tiny offset from lon and lat to achieve a edge behaviour consistent with (1). Due to mapbox/rasterio/#1844 this is unfortunately also necessary for (1).

Edge behavior

As of version 0.5 regionmask has a new edge behavior - points that fall of the outline of a region are now consistently treated. This was not the case in earlier versions (xref matplotlib/matplotlib#9704). It’s easiest to see the edge behaviour in an

Example

Define a region and a lon/ lat grid, such that some gridpoints lie exactly on the border:

outline = np.array([[-80.0, 50.0], [-80.0, 28.0], [-100.0, 28.0], [-100.0, 50.0]])

region = regionmask.Regions([outline])
ds_US = regionmask.core.utils.create_lon_lat_dataarray_from_bounds(
    *(-161, -29, 2), *(75, 13, -2)
)

print(ds_US)
<xarray.Dataset>
Dimensions:   (lat: 30, lat_bnds: 31, lon: 65, lon_bnds: 66)
Coordinates:
  * lon       (lon) float64 -160.0 -158.0 -156.0 -154.0 ... -36.0 -34.0 -32.0
  * lat       (lat) float64 74.0 72.0 70.0 68.0 66.0 ... 22.0 20.0 18.0 16.0
  * lon_bnds  (lon_bnds) int64 -161 -159 -157 -155 -153 ... -39 -37 -35 -33 -31
  * lat_bnds  (lat_bnds) int64 75 73 71 69 67 65 63 61 ... 27 25 23 21 19 17 15
    LON       (lat, lon) float64 -160.0 -158.0 -156.0 ... -36.0 -34.0 -32.0
    LAT       (lat, lon) float64 74.0 74.0 74.0 74.0 ... 16.0 16.0 16.0 16.0
Data variables:
    empty

Let’s create a mask with each of these methods:

mask_rasterize = region.mask(ds_US, method="rasterize")
mask_shapely = region.mask(ds_US, method="shapely")
mask_legacy = region.mask(ds_US, method="legacy")

Note

regionmask automatically detects which method to use, so there is no need to specify the method keyword.

Plot the masked regions:

f, axes = plt.subplots(1, 3, subplot_kw=dict(projection=ccrs.PlateCarree()))

opt = dict(add_colorbar=False, ec="0.5", lw=0.5, transform=ccrs.PlateCarree())

mask_rasterize.plot(ax=axes[0], cmap=cmap1, **opt)
mask_shapely.plot(ax=axes[1], cmap=cmap2, **opt)
mask_legacy.plot(ax=axes[2], cmap=cmap3, **opt)


for ax in axes:
    ax = region.plot_regions(ax=ax, add_label=False)
    ax.set_extent([-105, -75, 25, 55], ccrs.PlateCarree())
    ax.coastlines(lw=0.5)

    ax.plot(
        ds_US.LON, ds_US.lat, "*", color="0.5", ms=0.5, transform=ccrs.PlateCarree()
    )

axes[0].set_title("rasterize")
axes[1].set_title("shapely")
axes[2].set_title("legacy");

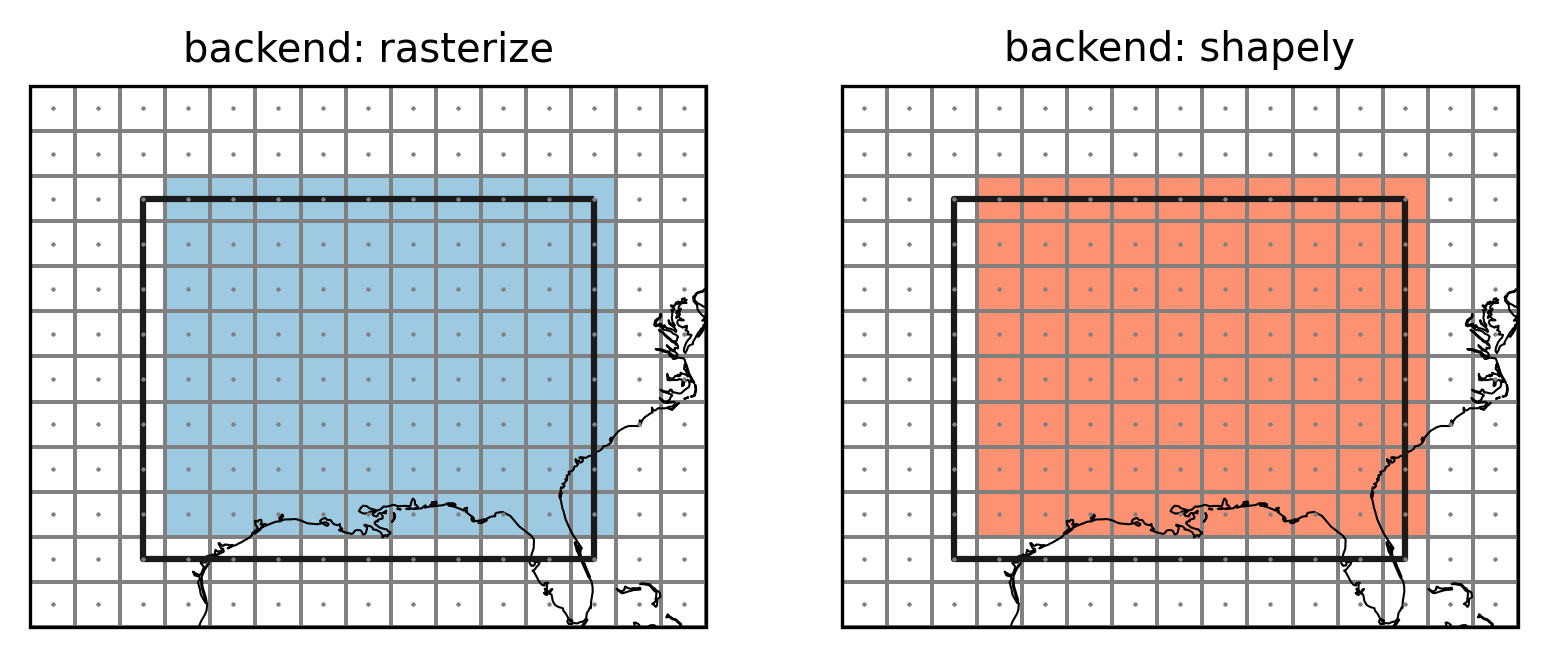

../_images/method_17_0.png

Points indicate the grid cell centers (lon and lat), lines the grid cell borders, colored grid cells are selected to be part of the region. The top and right grid cells now belong to the region while the left and bottom grid cells do not. This choice is arbitrary but mimicks what rasterio.features.rasterize does. This can avoid spurios columns of unassigned grid poins as the following example shows.

SREX regions

Create a global dataset:

ds_GLOB = regionmask.core.utils.create_lon_lat_dataarray_from_bounds(
    *(-180, 181, 2), *(90, -91, -2)
)
srex = regionmask.defined_regions.srex

srex_new = srex.mask(ds_GLOB)
srex_old = srex.mask(ds_GLOB, method="legacy")
f, axes = plt.subplots(1, 2, subplot_kw=dict(projection=ccrs.PlateCarree()))

opt = dict(add_colorbar=False, cmap="viridis_r")

srex_new.plot(ax=axes[0], **opt)
srex_old.plot(ax=axes[1], **opt)

for ax in axes:
    srex.plot_regions(ax=ax, add_label=False, line_kws=dict(lw=0.5))
    ax.set_extent([-150, -50, 15, 75], ccrs.PlateCarree())
    ax.coastlines(resolution="50m", lw=0.25)

axes[0].set_title("new (rasterize + shapely)")
axes[1].set_title("legacy");

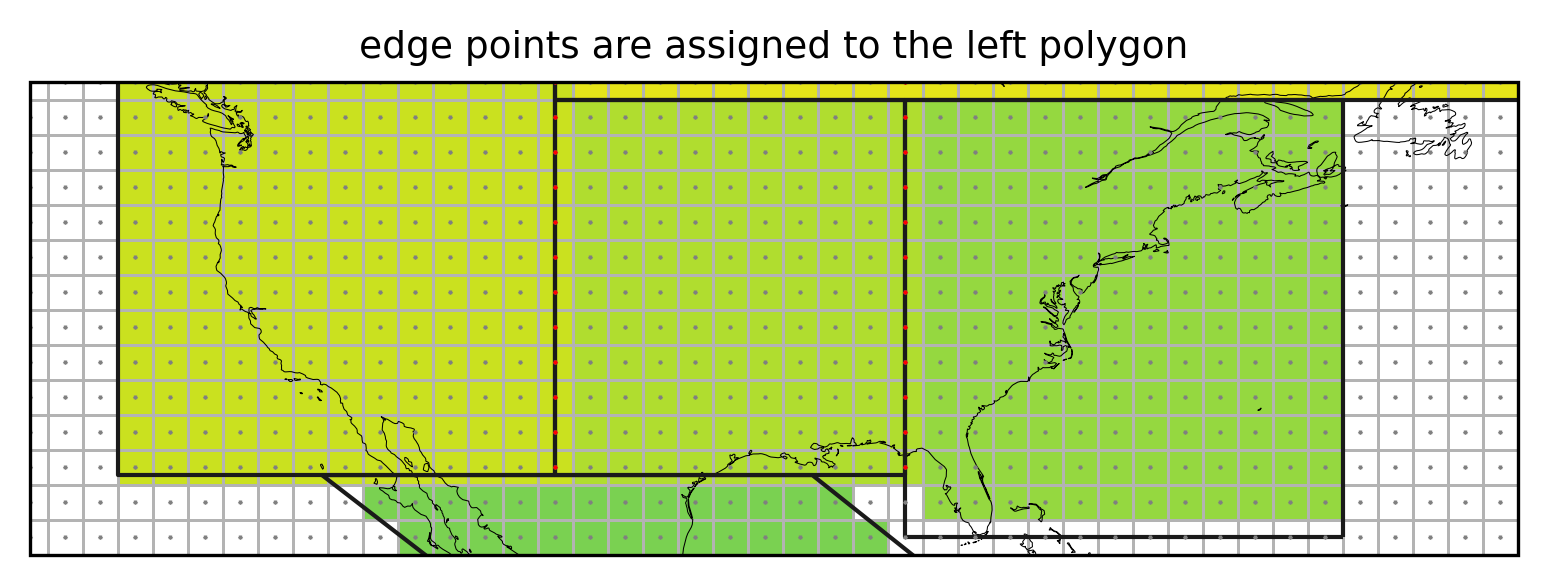

../_images/method_21_0.png

Points at -180°E (0°E) and -90°N

The described edge behaviour leads to a consistent treatment of points on the border. However, gridpoints at -180°E (or 0°E) and -90°N would never fall in any region.

We exemplify this with a region spanning the whole globe and a coarse longitude/ latidude grid:

outline_global = np.array(
    [[-180.0, 90.0], [-180.0, -90.0], [180.0, -90.0], [180.0, 90.0]]
)
region_global = regionmask.Regions([outline_global])

lon = np.arange(-180, 180, 30)
lat = np.arange(90, -91, -30)

LON, LAT = np.meshgrid(lon, lat)

Create the masks:

mask_global = region_global.mask(lon, lat)

# we need to manually create the mask
mask_global_nontreat = mask_global.copy()
mask_global_nontreat[-1, :] = np.NaN
mask_global_nontreat[:, 0] = np.NaN

And illustrate the issue:

f, axes = plt.subplots(1, 2, subplot_kw=dict(projection=ccrs.PlateCarree()))
f.subplots_adjust(wspace=0.05)

opt = dict(add_colorbar=False, ec="0.3", lw=0.5, transform=ccrs.PlateCarree())

ax = axes[0]
mask_global_nontreat.plot(ax=ax, cmap=cmap1, **opt)

# only for the gridlines
mask_global.plot(ax=ax, colors=["none"], levels=1, **opt)

ax.set_title("Not treating points at -180°E and -90°N", size=6)
ax.set_title("(a)", loc="left", size=6)

ax = axes[1]
mask_global.plot(ax=ax, cmap=cmap1, **opt)

ax.set_title("Treating points at -180°E and -90°N", size=6)
ax.set_title("(b)", loc="left", size=6)


for ax in axes:

    ax = region_global.plot(
        ax=ax, line_kws=dict(lw=2, color="#b15928"), add_label=False,
    )
    ax.plot(LON, LAT, "o", color="0.3", ms=2, transform=ccrs.PlateCarree(), zorder=5)

    ax.outline_patch.set_visible(False)

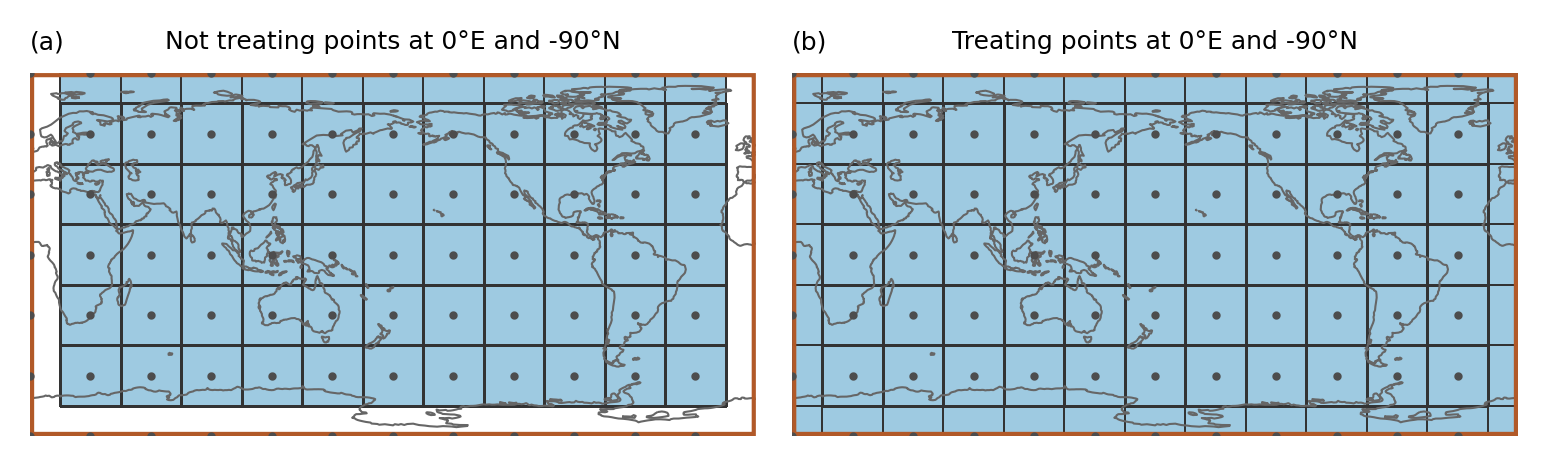

../_images/method_27_0.png

In the example the region spans the whole globe and there are gridpoints at -180°E and -90°N. Just applying the approach above leads to gridpoints that are not assigned to any region even though the region is global (as shown in a). Therefore, points at -180°E (or 0°E) and -90°N are treated specially (b):

Points at -180°E (0°E) are mapped to 180°E (360°E). Points at -90°N are slightly shifted northwards (by 1 * 10 ** -10). Then it is tested if the shifted points belong to any region

This means that (i) a point at -180°E is part of the region that is present at 180°E (and not the one at -180°E) and (ii) only the points at -90°N get assigned to the region above.

outline_global1 = np.array([[-180.0, 60.0], [-180.0, -60.0], [0.0, -60.0], [0.0, 60.0]])
outline_global2 = np.array([[0.0, 60.0], [0.0, -60.0], [180.0, -60.0], [180.0, 60.0]])

region_global_2 = regionmask.Regions([outline_global1, outline_global2])

mask_global_2regions = region_global_2.mask(lon, lat)
ax = region_global_2.plot(line_kws=dict(color="#b15928", zorder=3), add_label=False,)

ax.plot(LON, LAT, "o", color="0.3", ms=2, transform=ccrs.PlateCarree(), zorder=5)

mask_global_2regions.plot(ax=ax, cmap=cmap_2col, **opt)
# only for the gridlines
mask_global.plot(ax=ax, colors=["none"], levels=1, **opt)

ax.set_title("Points at -180°E are mapped to 180°E", size=6)

ax.outline_patch.set_lw(0.5)
ax.outline_patch.set_zorder(1);

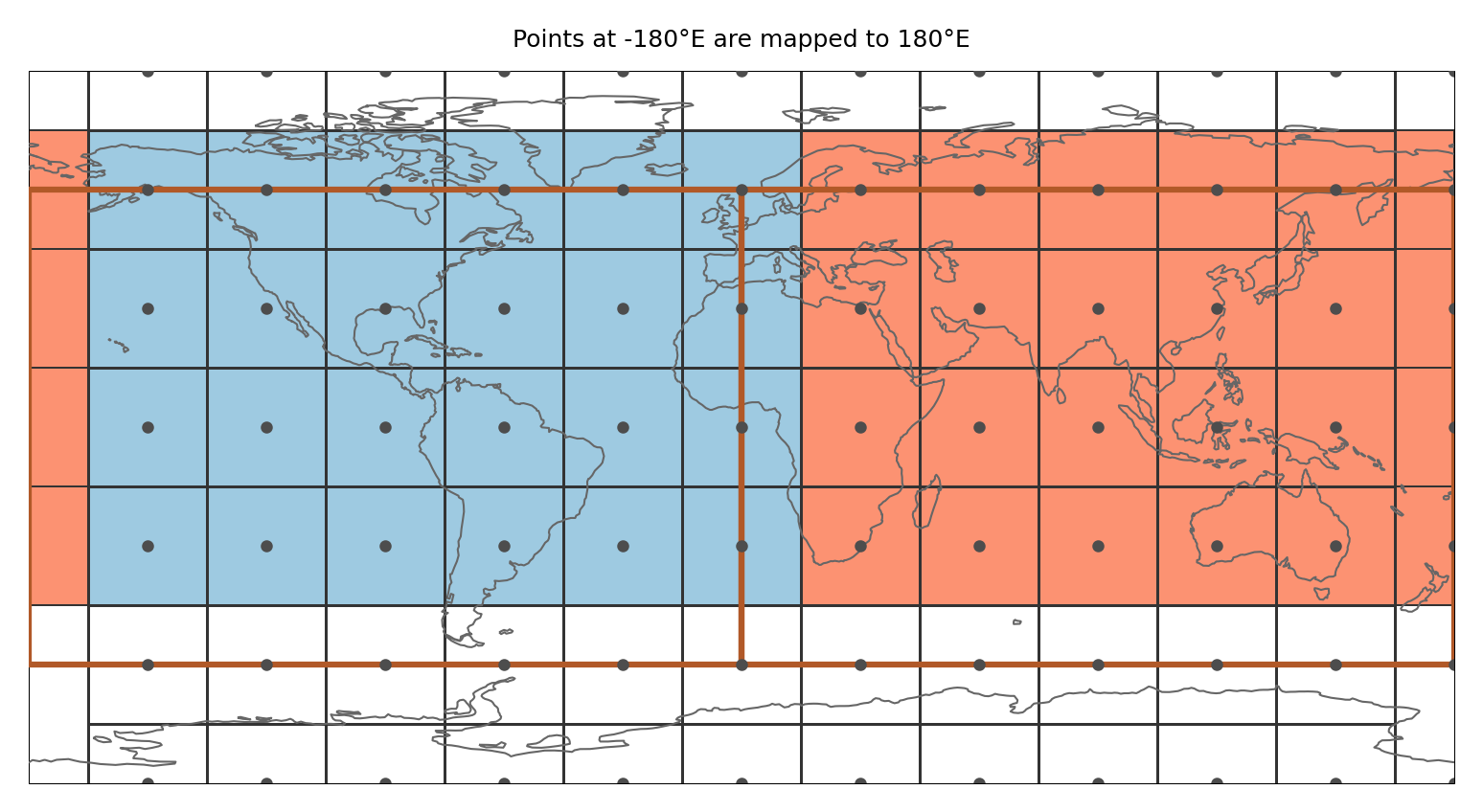

../_images/method_30_0.png

Note

This only applies if the border of the region falls exactly on the point. One way to avoid the problem is to calculate the fractional overlap of each gridpoint with the regions (which is not yet implemented).

Polygon interiors

Polygons can have interior boundaries (‘holes’). Previously these were not considered and e.g. the Caspian Sea was not ‘unmasked’.

Example

Let’s test this on an example and define a region_with_hole:

interior = np.array(
    [[-86.0, 44.0], [-86.0, 34.0], [-94.0, 34.0], [-94.0, 44.0], [-86.0, 44.0],]
)

poly = Polygon(outline, [interior])

region_with_hole = regionmask.Regions([poly])
mask_hole_rasterize = region_with_hole.mask(ds_US, method="rasterize")
mask_hole_shapely = region_with_hole.mask(ds_US, method="shapely")
mask_hole_legacy = region_with_hole.mask(ds_US, method="legacy")
f, axes = plt.subplots(1, 3, subplot_kw=dict(projection=ccrs.PlateCarree()))

opt = dict(add_colorbar=False, ec="0.5", lw=0.5)

mask_hole_rasterize.plot(ax=axes[0], cmap=cmap1, **opt)
mask_hole_shapely.plot(ax=axes[1], cmap=cmap2, **opt)
mask_hole_legacy.plot(ax=axes[2], cmap=cmap3, **opt)

for ax in axes:
    region.plot_regions(ax=ax, add_label=False)

    ax.set_extent([-105, -75, 25, 55], ccrs.PlateCarree())
    ax.coastlines(lw=0.5)

    ax.plot(
        ds_US.LON, ds_US.lat, ".", color="0.5", ms=0.5, transform=ccrs.PlateCarree()
    )

axes[0].set_title("rasterize")
axes[1].set_title("shapely")
axes[2].set_title("legacy");

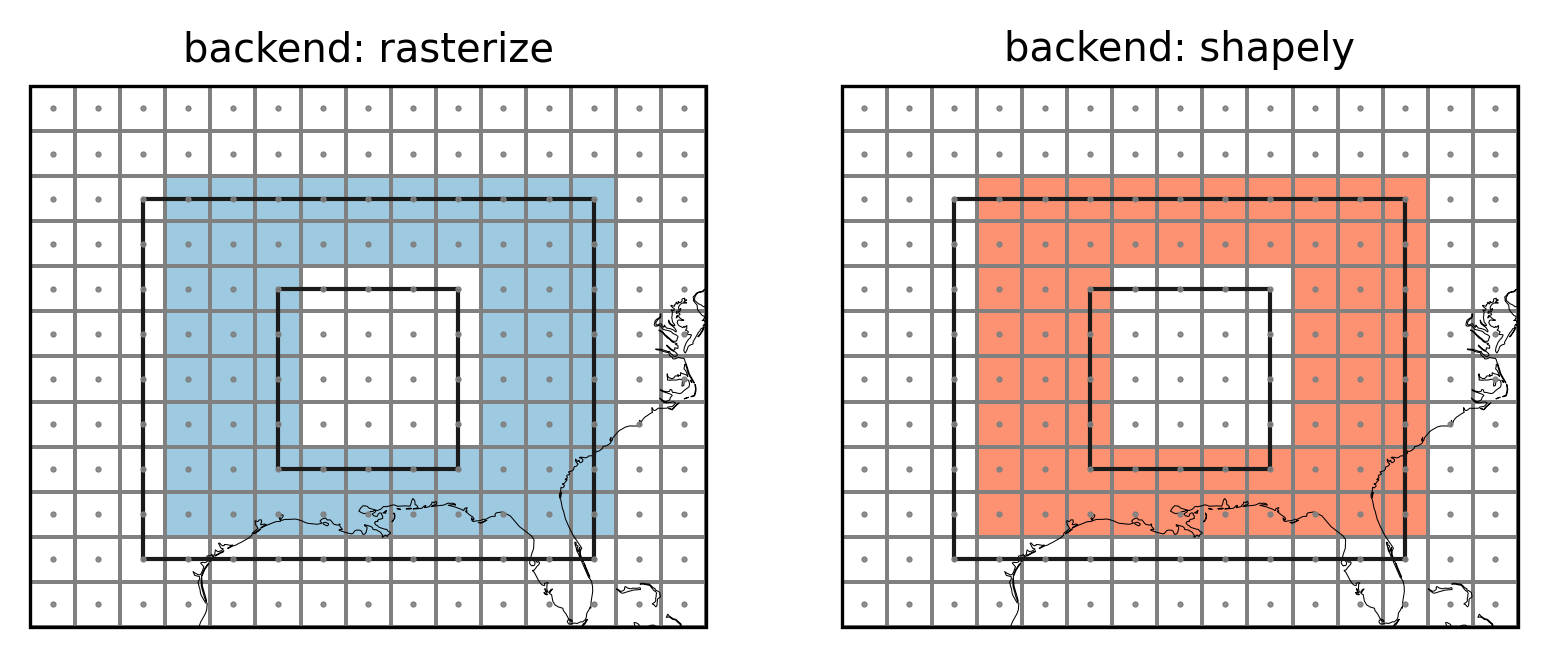

../_images/method_35_0.png

Caspian Sea

land110 = regionmask.defined_regions.natural_earth.land_110

land_new = land110.mask(ds_GLOB)
land_old = land110.mask(ds_GLOB, method="legacy")
f, axes = plt.subplots(1, 2, subplot_kw=dict(projection=ccrs.PlateCarree()))

opt = dict(add_colorbar=False)

land_new.plot(ax=axes[0], cmap=cmap2, **opt)
land_old.plot(ax=axes[1], cmap=cmap3, **opt)

for ax in axes:

    ax.set_extent([15, 75, 15, 55], ccrs.PlateCarree())
    ax.coastlines(resolution="50m", lw=0.5)

    ax.plot(
        ds_GLOB.LON, ds_GLOB.lat, ".", color="0.5", ms=0.5, transform=ccrs.PlateCarree()
    )

axes[0].set_title("new (rasterize + shapely)")
axes[1].set_title("legacy");

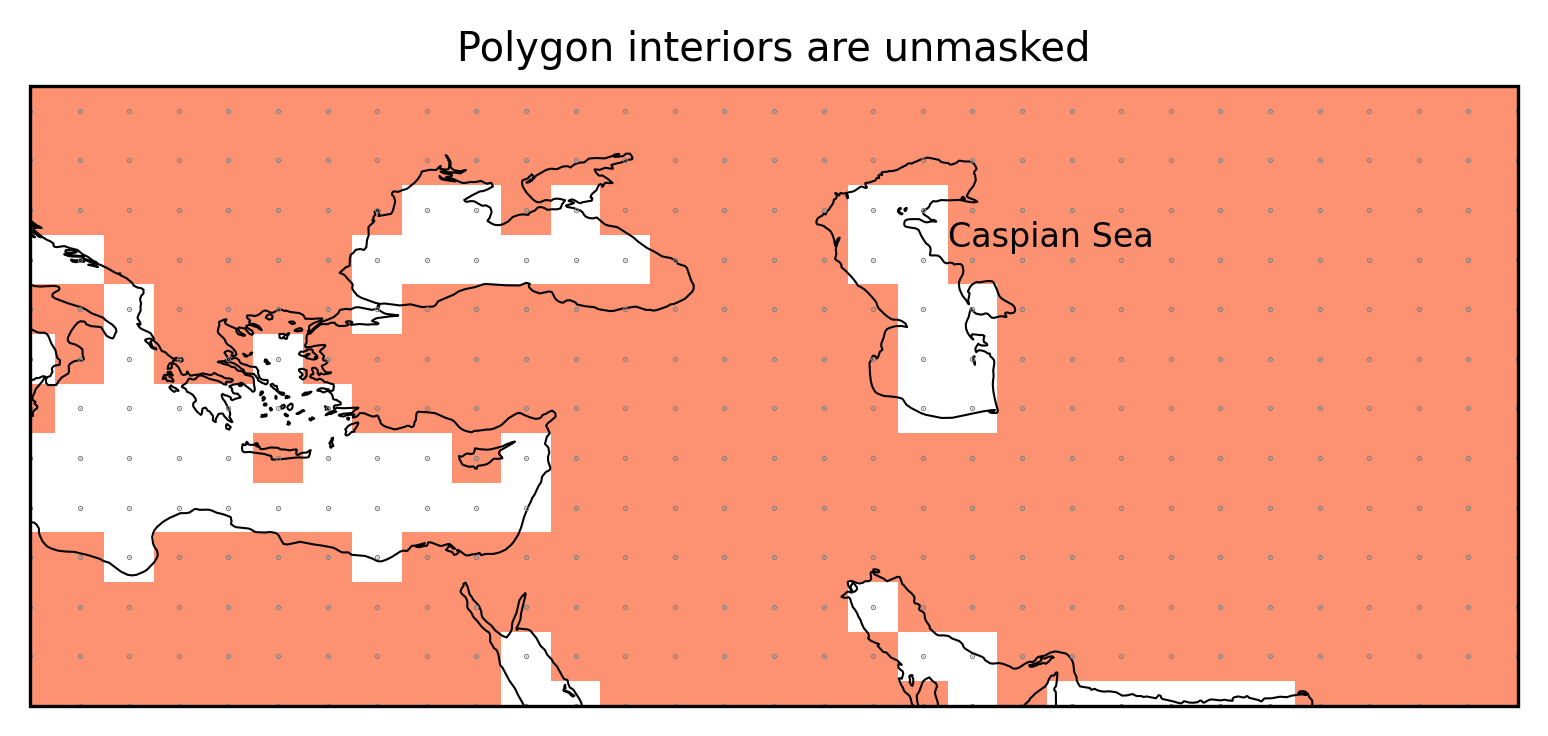

../_images/method_38_0.png

Speedup

The new methods are faster than the old one:

print("Method: rasterize")
%timeit -n 10 region.mask(ds_US, method="rasterize")
print("Method: shapely")
%timeit -n 10 region.mask(ds_US, method="shapely")
print("Method: legacy")
%timeit -n 10 region.mask(ds_US, method="legacy")
Method: rasterize
2.46 ms ± 143 µs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Method: shapely
1.75 ms ± 37.9 µs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Method: legacy
4.11 ms ± 425 µs per loop (mean ± std. dev. of 7 runs, 10 loops each)

While there is not a big difference for this simple example, the difference gets larger for more complex geometries and more gridpoints:

ds_GLOB = regionmask.core.utils.create_lon_lat_dataarray_from_bounds(
    *(-180, 181, 2), *(90, -91, -2)
)

countries_110 = regionmask.defined_regions.natural_earth.countries_110
print("Method: rasterize")
%timeit -n 1 countries_110.mask(ds_GLOB, method="rasterize")
Method: rasterize
21.8 ms ± 3.22 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
print("Method: shapely")
%timeit -n 1  countries_110.mask(ds_GLOB, method="shapely")
Method: shapely
325 ms ± 7.8 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
print("Method: legacy")
%timeit -n 1  countries_110.mask(ds_GLOB, method="legacy")
Method: legacy
5.15 s ± 70 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
